| Parameter | Details |

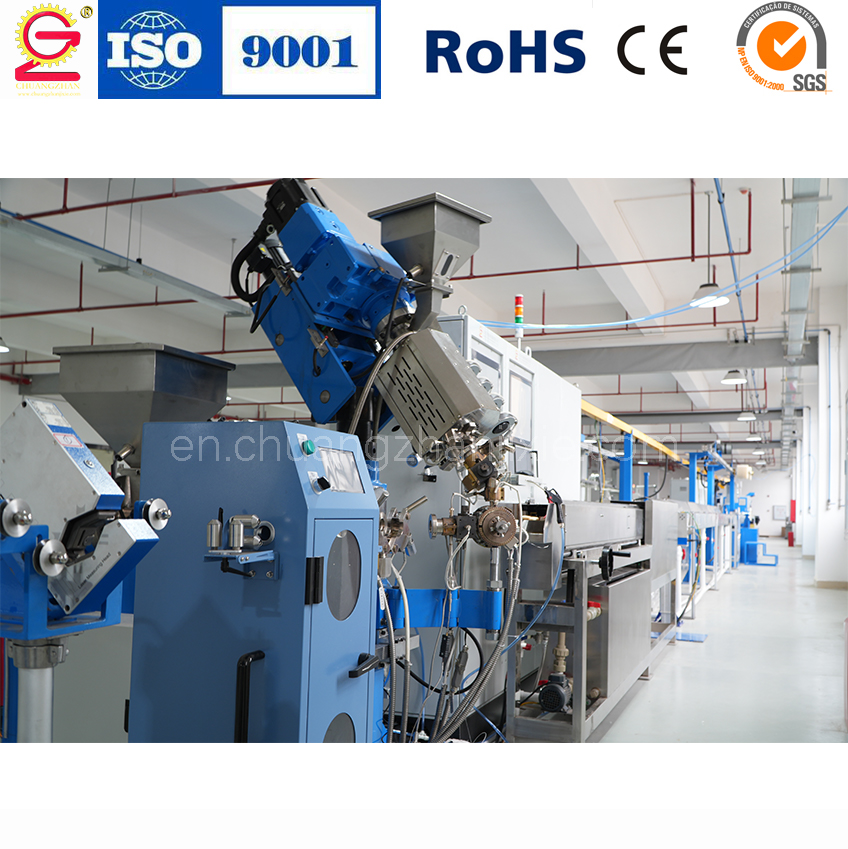

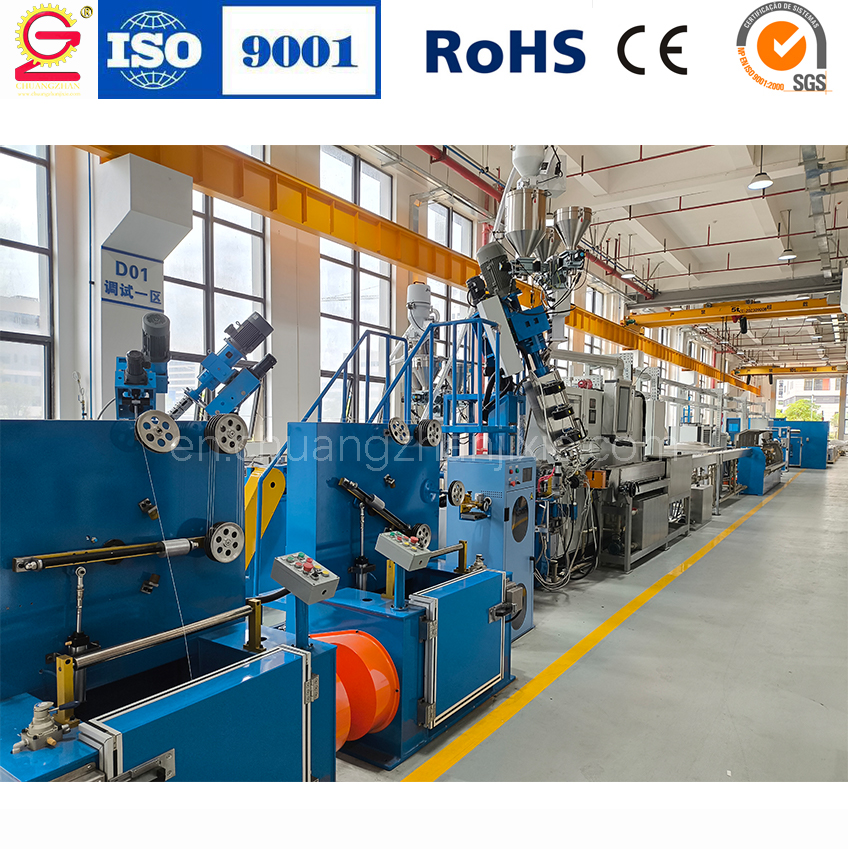

| Machine Name | Submarine Cable Extrusion Production Line |
| Conductor Range | 10–2500mm² copper/aluminum single/multi-core & armoured conductor, for power & submarine optical cable |
| Dimension Range | Insulation:2.0–15.0mm; Sheath:3.0–8.0mm; Final OD Φ50–300mm, fully customizable |
| Extrusion Tech | 3-layer co-extrusion; pressure-resistant crosshead for 10–100MPa deep-sea pressure, temp 200–250℃, tolerance ±1.5℃ |
| Precision Control | Dual feedback of die pressure & laser diameter gauge, dimensional accuracy ±0.02mm, no thick-wall eccentricity |
| Anti-corrosion Parts | WC-Co bimetallic screw & barrel (50% higher corrosion resistance); full seawater-resistant seals |
| Intelligent Monitoring | AI auto-adjust melt pressure & line speed; deep-sea simulation module, finished product yield ≥98.5% |
| Online Inspection | Max 120MPa hydrostatic test, partial discharge test; offline 1000h salt spray & impact test |
| Compliance Standard | IEC 60502-2, GB/T 12706 |
| Application | Offshore wind power, island interconnection, transoceanic communication, offshore oil & gas platform cable |
