| Parameter | Detail |

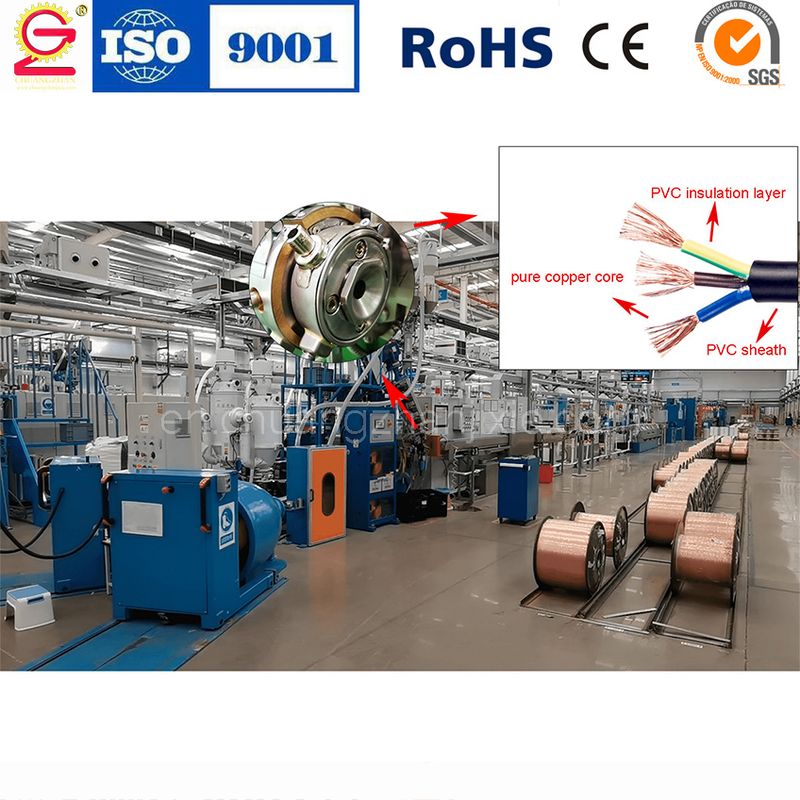

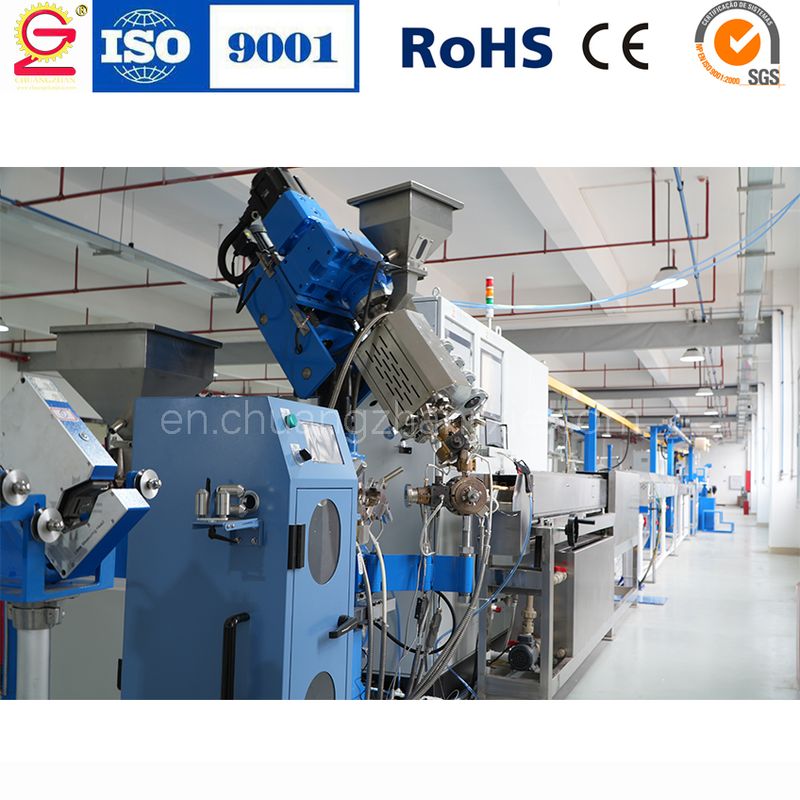

| Machine Name | Multi-layer Co-extrusion Precision Extrusion Machine |
| Conductor Area | 0.3–8.0mm² fine copper / aluminum conductor |
| Single Layer Thickness | 0.05–0.50mm ultra-thin customizable extrusion |
| Finished Outer Diameter | 0.2mm–8.0mm precision micro wire |
| Max Output | 35KG/h total extrusion capacity |
| Tractor Speed | 0.5–1200m/min dynamically adjustable |
| Extrusion Performance | Multi-layer synchronous co-extrusion, high concentricity, no delamination |
| Control System | Independent multi-temperature zone, closed-loop pressure & speed control |
| Material Compatibility | PE, PVC, fluoroplastic, flame-retardant and modified materials |
| Application | Electronic, medical, new energy and high-frequency composite cables |
