| Item | Specification |
| Application | General cable core twisting; data cable twisting when matched with untwister |
| Processing Range | Core wire Φ1.5–4.0mm, twisted wire Φ4–12mm |
| Working Speed | Rated 600RPM |
| Twist Pitch | 50–400mm, computer adjustable |
| Twist Direction | Left, Right, S/Z switchable |
| Take-up Reel | Φ1000mm |

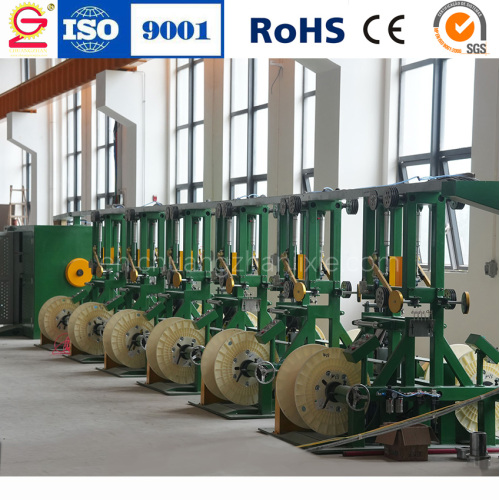

| Structure | 6-head magnetic powder pay-off, bundling frame, horizontal central taping machine, Φ800 cantilever twister |
| Tension Control | 2.5kg magnetic powder tension system |
| Drive & Mechanism | 20HP Siemens main motor, Yaskawa inverter, hydraulic reel lifting, Taiwan ball screw traversing |
| Control System | Siemens 10'' touch screen + PLC, PID regulation, MES interface, data storage & fault display |
| Safety Devices | Broken tape detection, door interlock protection |
