| Item | Specification |
| Application | General cable core twisting, data cable twisting with untwister linkage |
| Processing Range | Core wire Φ0.9–5.0mm, max twisted wire Φ30mm |
| Max Speed | 400RPM |
| Twist Pitch | 40–400mm (computer adjustable), accuracy ±2% |
| Twist Direction | Left, Right, S/Z switchable |

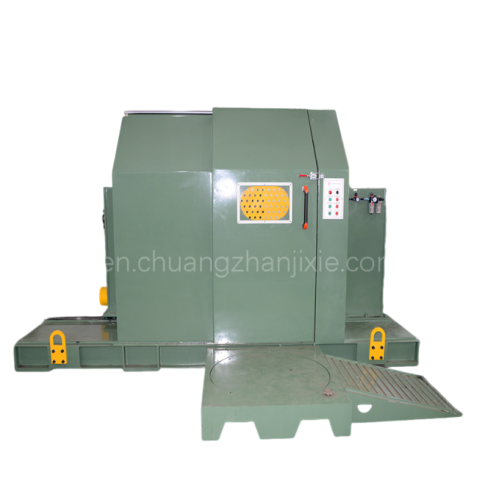

| Structure | 8-head magnetic pay-off frame, concentric taping machine, Φ1250 cantilever twister |
| Tension Control | 5kg magnetic powder tension control system |
| Drive & Mechanism | 50HP Siemens main motor, Yaskawa inverter, alloy aluminum cantilever, hydraulic reel lifting, Taiwan ball screw traversing |
| Control System | Siemens 10'' touch screen + PLC, PID automatic adjustment, MES interface, data storage & fault display |
| Safety Devices | Broken tape detection, door interlock protection |
