| Parameter | Description |

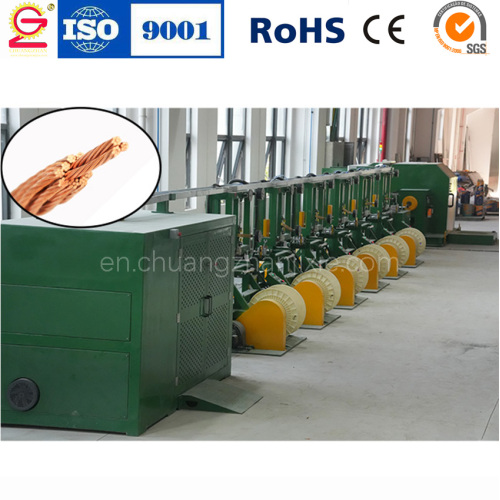

| Model | 800 cantilever single twister |
| Application | Common core twisting, data cable with back twist machine |
| Rotation speed | 600 RPM |
| Wire range | Single core 1.5-4.0mm, finished cable 4-12mm |
| Lay length | 50-400mm, digital adjustable |
| Take up reel | 1000mm |
| Twist direction | Left right S Z switchable |
| Machine parts | 6 head magnetic payoff stand, collector, taping unit, main machine, control cabinet |
| Payoff system | Magnetic powder tension control |
| Main drive | 20HP Siemens motor, Yaskawa inverter, hydraulic reel lift, ball screw traversing |
| Control system | Siemens 10 inch touch PLC, MES, data storage, auto PID control |
| Safety | Broken tape detection, door interlock |
