| Parameter | Description |

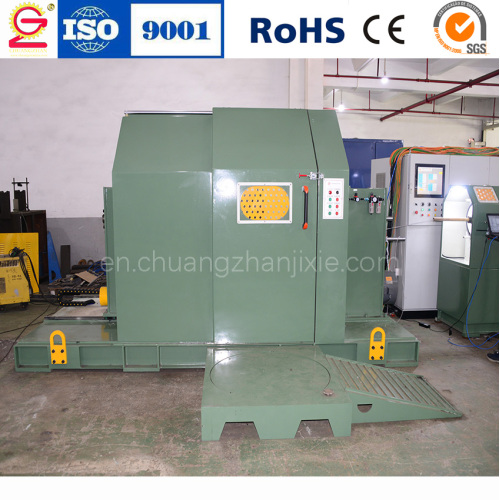

| Model | 1250 cantilever computer single twister |
| Application | General core twisting, data cable with back twist machine |
| Rotation speed | Max 400 RPM |
| Wire range | Single core 0.9-5.0mm, max finished cable 30mm |
| Lay length | 40-400mm digital adjustable, tolerance ±2% |
| Twist direction | Left right S Z switchable |
| Machine parts | 8 head magnetic payoff stand collector horizontal taping unit main machine control cabinet |
| Payoff system | 5kg magnetic powder tension control |
| Main structure | 50HP Siemens motor Yaskawa inverter alloy aluminum cantilever hydraulic reel lift ball screw traversing |
| Control system | Siemens 10 inch touch PLC, MES connection data storage auto PID control |
| Safety | Broken tape detection door interlock |
