| Parameter | Description |

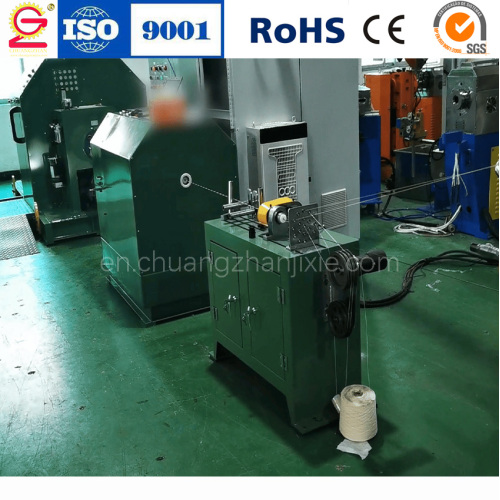

| Model | 630 cantilever single twister with back twist |
| Application | Medical data military HDMI DVI USB CAT7 high frequency core twisting |
| Rotation speed | Max 1000 RPM normal 800 RPM |
| Wire range | Single core 0.6 to 3.0 mm max cable OD 10 mm |
| Lay length | 15 to 150 mm digital adjustable |
| Tension | 100 to 1500 gf for wire and tape |
| Machine parts | 12 head payoff stand collector side taping paper wrapping main machine control cabinet |
| Payoff system | Pneumatic tension Taiwan Chengbang motor |
| Main machine | 15HP Siemens motor Yaskawa inverter alloy cantilever ball screw S Z twist switch |
| Control system | Siemens 10 inch touch screen PLC MES data storage one click setting auto PID control |
| Safety | Broken tape detection door interlock |
