| Parameter | Description |

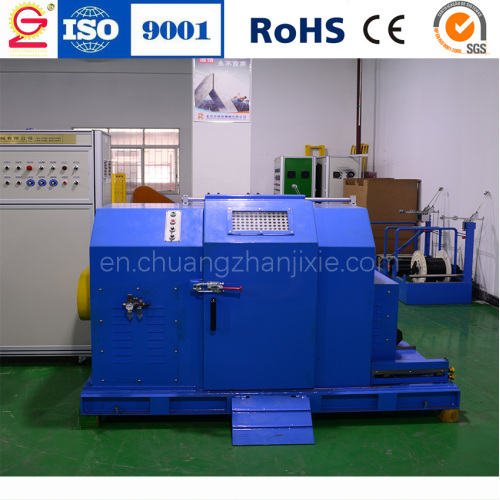

| Product Name | Φ500 Horizontal High Speed Winding Machine |
| Application | High shielding winding for isolation wire, manufacturing high-shield cables |
| Power Supply | 3-phase 380V 50Hz, standard industrial color body |

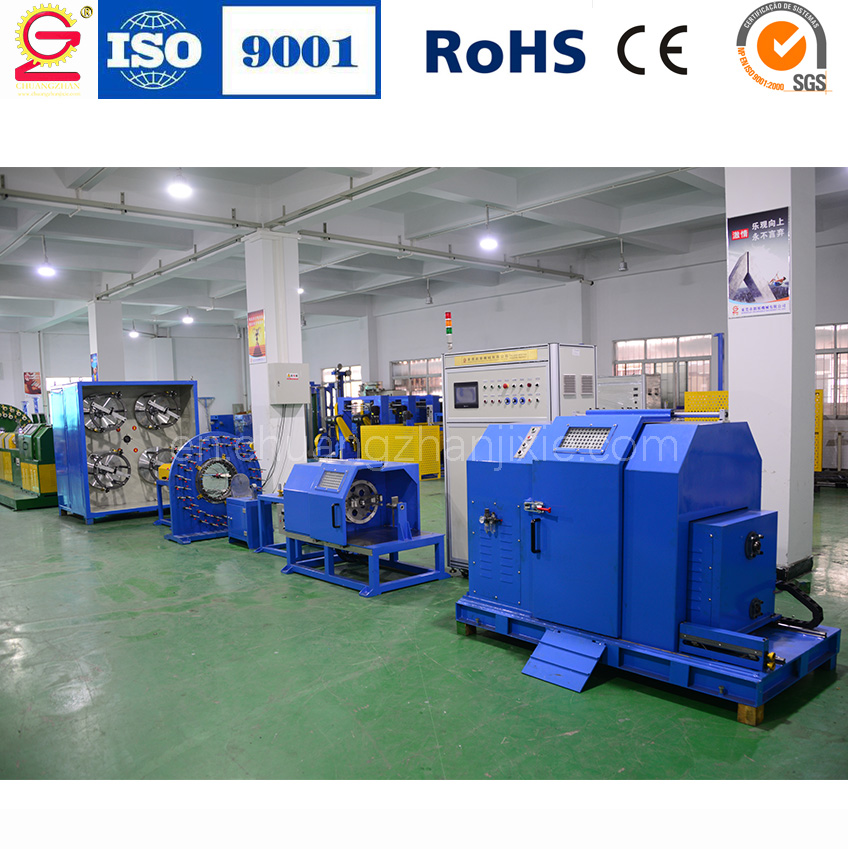

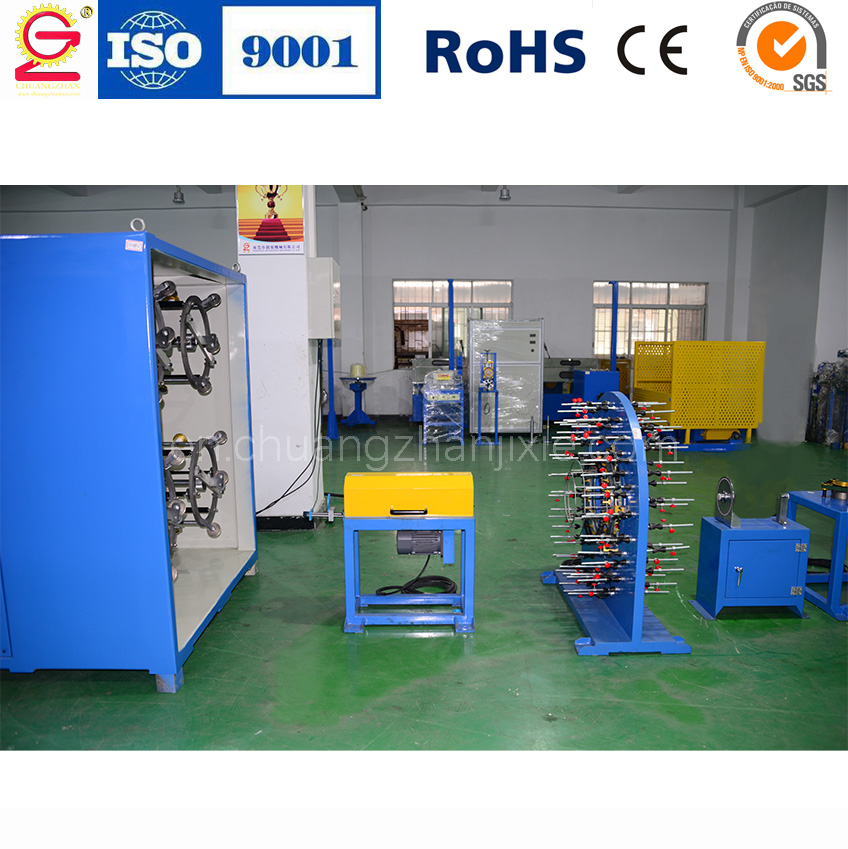

| Machine Structure | Φ400-500mm payoff unit + 50-head Φ125mm winding payoff unit + Φ630mm take-up unit |
| Payoff Unit | Break wire sensor & auto stop protection; tension range 50-2000g; Yaskawa Japan servo motor drive |
| Winding Unit | 50 heads for 0.1-0.2mm copper wire; inclined die hole 25mm, precise tension adjustment |
| Take-up Performance | Max spindle speed 800RPM; line speed 5-20m/min; electronic pitch 5-40mm adjustable; axial traversing & meter-count stop function |
| Safety & Parts | Fully enclosed safety cover with door interlock; NSK Japan bearings, key parts adopt international brands |
| Processing Range | Core wire OD 1.0-5.0mm, winding copper wire OD 0.1mm |
| Advantage | Efficient & reliable solution for high-shield cable production |
